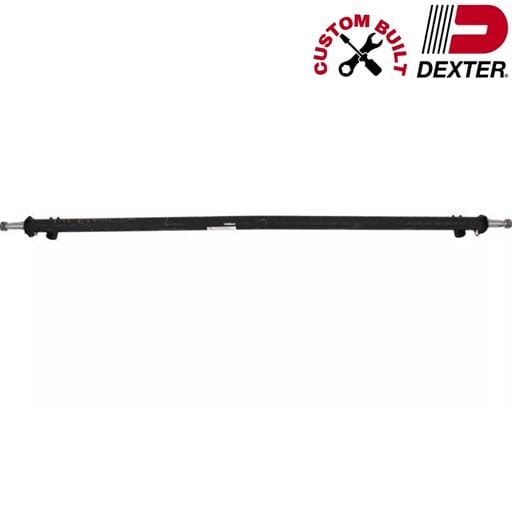

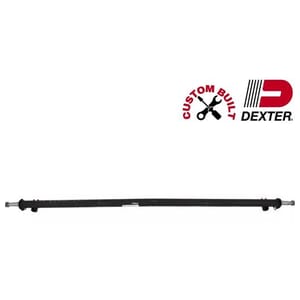

Dexter Custom Built 4,400 lb. Standard Spring Trailer Axle Beam
Manufacturer: Dexter Trailer Axle
Part #: KT44XX84F
Halloween Sale! Save 10.7% off this product! Discount auto applied at checkout
This product qualifies for quantity discount pricing
| Quantity | Discount% | Discounted Base Price |
|---|---|---|
| 2-10 | 2% | $235.34 |
| 11-20 | 4% | $230.53 |
| 21-30 | 6% | $225.73 |
| 31-40 | 8% | $220.93 |
| 41-50 | 10% | $216.13 |
| 51-60 | 12% | $211.32 |
| 61-70 | 14% | $206.52 |
| 71-80 | 16% | $201.72 |
| 81-90 | 18% | $196.91 |
| 91+ | 20% | $192.11 |
$9.99 FedEx Flat Rate Shipping Per Order
Made In The USA
107 Years in Trailer Parts Distribution
Frequently Bought With
Electric Brake options for 4,400 lbs. Dexter® Axle
U-Bolt and Hanger Kit options for 4,400 lbs. Dexter® Axle
Suspension Kit Options for 4,400 lbs. Dexter® Axle
Wheel and Tire options for 4,400 lbs. Dexter® Axle
Description
Build this 4,400 lb. Dexter axle beam the way you want it. Choose the hub face, camber, spring seats, and pre-wire. Each choice is on the form. Hubs, springs, hangers, and U-bolts are not included.
Build options
- Hub face (required): 45" to 95". Maximum hub face is 95". Hub face is the measurement from the wheel mount on one hub to the same point on the other hub.
- Camber and spring seats (required): Straight, seats ship loose. Straight, seats welded on. Cambered, seats welded over the axle (overslung). Cambered, seats welded under the axle (underslung). Cambered, seats ship loose.
- Spring center (optional): Use this only if the seats are welded. Overhang is the hub face minus the spring center. It must be between 12.00" and 19.00". A 95" hub face and an 80" spring center is 15" of overhang. Leave it blank and the seats ship loose.
- Pre-wire (required): No, or yes.
Fitment note
Set the hub face between 45" and 95". If the spring seats are welded, keep the overhang between 12.00" and 19.00". Leave the spring center blank and the seats ship loose. This form does not offer E-Z Lube or a brake flange. This listing is the beam only. This axle is built to order. Once the order is placed it cannot be changed or returned. Verify the hub face and spring center before ordering or call for assistance.
Questions about this Dexter axle beam? Call 1-800-866-3336.
Browse more Custom Built Dexter Trailer Axles.
