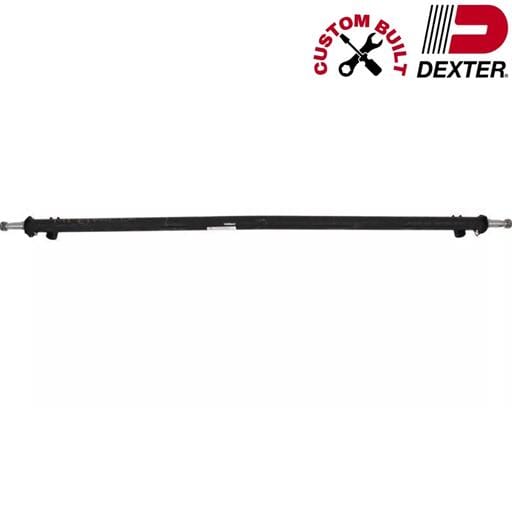

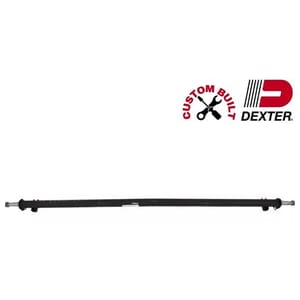

Dexter Custom Built 6,000 lb. Standard Spring Trailer Axle Beam

Build this 6,000 lb. Dexter axle beam the way you want it. Choose the hub face, camber, spring seats, tube, E-Z Lube, and pre-wire. Each choice is on the form. Hubs, springs, hangers, and U-bolts are not included.

Build options

• Hub face (required): 45" to 95". Maximum hub face is 95". Hub face is the measurement from the wheel mount on one hub to the same point on the other hub.
• Camber and spring seats (required): Straight, seats ship loose. Straight, seats welded on. Cambered, seats welded over the axle (overslung). Cambered, seats welded under the axle (underslung). Cambered, seats ship loose.
• Tube (required): 3" round with a standard wall, .250" nominal. Or a 3" round tube with a heavy wall, .3125" nominal. Or a 3.5" round tube with a .50" nominal wall. The heavy wall and the 3.5" tube are an additional cost.
• Spring center (optional): Use this only if the seats are welded. Overhang is the hub face minus the spring center. It must be 12.75" to 20.00". With disc brakes it must be 18.00" to 21.50". A 95" hub face and a 77" spring center is 18" of overhang. Leave it blank and the seats ship loose.
• E-Z Lube (required): No, or yes. Yes is an additional cost.
• Pre-wire (required): No, or yes.

Fitment note

Set the hub face between 45" and 95". If the spring seats are welded, use the overhang range for the build you chose. Leave the spring center blank and the seats ship loose. This form does not offer a brake flange. This listing is the beam only. This axle is built to order. Once the order is placed it cannot be changed or returned. Verify the hub face and spring center before ordering or call for assistance.

Questions about this Dexter axle beam? Call 1-800-866-3336.
