SOUTHWEST WHEEL® Southwest Wheel® Single Axle Suspension Kit with No Hangers - HL3500-KIT-SINGLE

Updating...

Part #: HL3500-KIT-SINGLE

| UPC: 00810067320887

Price: $109.99

$9.99 FedEx Flat Rate Shipping Per Order

107 Years in Trailer Parts Distribution

Description

3,500 lbs. Trailer Axle Suspension kit Including Leaf Springs, Shackle & U-Bolt kit.

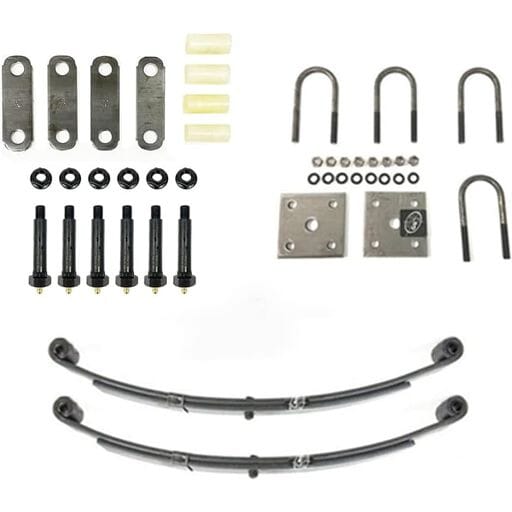

This kit includes:

2x 4 leaf 25 1/4" double eye spring 1750 lbs. each. 1 3/4" wide and will accept a 9/16" shackle bolt. Nylon bushing are included.
1 x single Shackle kit for double eye spring.
1x 1 2 3/8" round U-bolt kit, bolt length 5 1/2", 1/2" diameter, for 1 3/4"

Part No	Quantity	Description
SW4B	2	4 Leaf 25 1/4" Double Eye Spring 1750 lbs.
UBR-238550-50F	4	2 3/8" U-bolts, 5.5" long, 2.44" ID width, 1/2"-20 thread, 2" thread length
TP-238175R	2	3.75" x 4.8" Tie Plates for 2 3/8" U-bolts
12NFN	8	1/2"-20 Nuts
12LW	8	1/2" Lock Washers
SL-313	4	3 1/8" Shackle Link
916SLNE	6	9/16" Self-Locking Nut
916X3NFBLN	6	9/16"-18 x 3" Shackle Bolt
916NB	4	9/16" Nylon Bushing 1.75" Length, .5625" ID, .6875" OD
