3,500 lb. DeeMaxx Hydraulic Disc 4" Drop Standard Spring Dexter® Trailer Axle
Manufacturer: Dexter Trailer Axle
Part #: KD35XX84F
This product qualifies for quantity discount pricing
| Quantity | Discount% | Discounted Base Price |
|---|---|---|
| 2-5 | 2% | $649.73 |
| 6-20 | 4% | $636.47 |
| 21-30 | 6% | $623.21 |
| 31-40 | 8% | $609.95 |
| 41-500 | 10% | $596.69 |
$9.99 FedEx Flat Rate Shipping Per Order
107 Years in Trailer Parts Distribution
Summary
Trailer Axle: 2 3/8" diameter x 3/16" nominal wall round tubing. DeeMaxx or Kodiak disc brake is available in a 5-4.5" bolt circle and available in two different finishes DeeMaxx with Gold Caliper or DeeMaxx with Max Caliper. The trailer Axle will come complete with DeeMaxx hub/rotors, calipers, and mounting brackets. Lubrication: Grease or Kodiak Oil Bath Lube is not included. Spindle: Type 84 with an inner journal dimension of 1 3/8" and an outer journal dimension of 1 1/16". Trailer Axle price does not include springs, hangers, or U-bolts. Trailer Axles are available in different lengths and hub faces. Maximum Overhang = 18.5" Minimum Overhang = 15" Overhang is the difference between the spring center and the hub face. Exceeding the maximum overhang will result in reduced axle capacity. Minimum Overhang dimensions are based on zero offset wheels and physical clearances; and are determined by suspension type, wheel and tire combination. Axles are straight axles, not cambered. Coated with standard black paint. Axle seats come loose with axle. Brake axles will require assembly. To order a brake axle you will need to tell us your hub face measurement, select disc brake type, and select lube type. . Then select update kit and the order button will appear.
Frequently Bought With
U-Bolt and Hanger Kit options for 3,500 lbs. Dexter® Axle

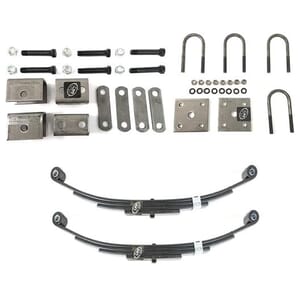

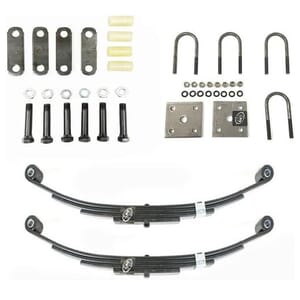

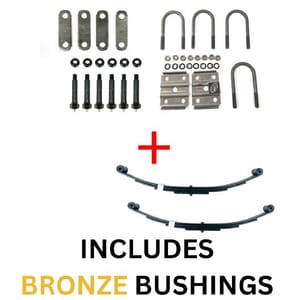

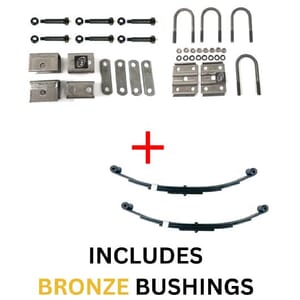

Single Suspension Kit options for 3,500 lbs. Dexter® Axle

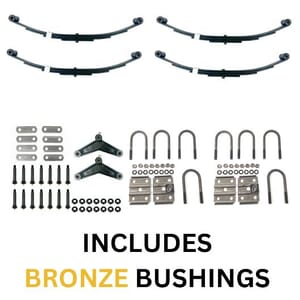

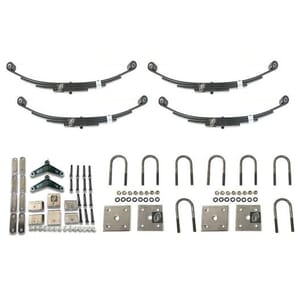

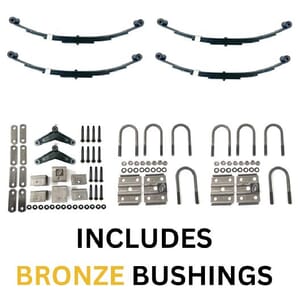

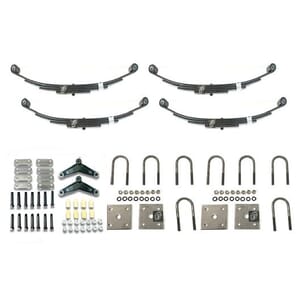

Tandem Suspension Kit options for 3,500 lbs. Dexter® Axle
Wheel and Tire options for 3,500 lbs. Dexter® Axle
Description
The Dexter® Trailer Axle 3,500 lb. DeeMaxx Hydraulic Disc 4" Drop Standard Spring is a genuine Dexter drop axle beam equipped with DeeMaxx Hydraulic Disc Brakes. Designed for single axle utility trailers, boat trailers, and cargo trailers that require additional ground clearance or a lower ride height, this 4" drop axle provides a lower center of gravity for improved stability and superior braking performance.
Key Features
- Capacity: 3,500 lb.
- Drop: 4" Drop
- Tube: 2-3/8" diameter round tubing with 3/16" nominal wall thickness
- Spindles: Type 84 with an inner journal dimension of 1 3/8" and an outer journal dimension of 1 1/16"
- Brakes: DeeMaxx Hydraulic Disc Brakes
- Design: Straight axle (not cambered)
- Finish: Black painted for corrosion protection
- Brand: Genuine Dexter Axle
Trailer Axle: 2 3/8" diameter x 3/16" nominal wall round tubing. DeeMaxx disc brake is available in a 5-4.5" bolt circle and available in two different finishes — DeeMaxx with Gold Caliper or DeeMaxx with Max Caliper. The trailer Axle will come complete with DeeMaxx hub/rotors, calipers, and mounting brackets. Lubrication: Grease. Trailer Axle price does not include springs, hangers, or U-bolts. Trailer Axles are available in different lengths and hub faces. Maximum Overhang = 18.5" Minimum Overhang = 15". Overhang is the difference between the spring center and the hub face. Exceeding the maximum overhang will result in reduced axle capacity. Brake axles will require assembly. To order a brake axle you will need to tell us your hub face measurement, select disc brake type, and select lube type. Then select update kit and the order button will appear.
Questions about this axle or custom configurations? Call our trailer experts at 1-800-866-3336.
