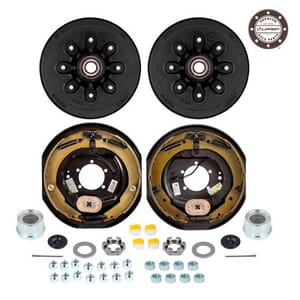

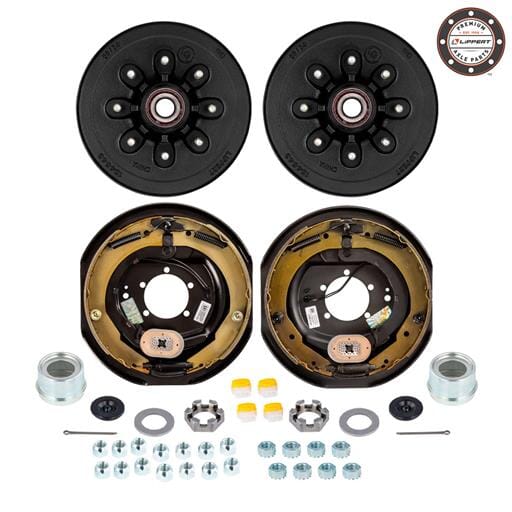

Dexter® Pre-Greased Easy Assemble 8 on 6.5" Hub and Drum 1/2" Studs Electric Brake kit for 7,000 lbs. Trailer Axle - PGBK42865ELE

From a novice to an expert in trailer repair, make life easy with the pre-greased easy to install trailer hub and drum from Dexter®.  The experts at Dexter® Axle have already prepared the hub and drum to go on the trailer spindle smoothly.  Don't worry about where the seal, inner, and outer bearings go, it is already done for you with the exact amount of grease you need to run the trailer axle properly.  The kit comes with all the part you need to complete the installation no matter what type of spindle you have and to make installation easier the hub and drum comes with easy-to-read instructions.

Dexter Pre-Greased 8 on 6-1/2" Hub-Drum with Dexter 12" x 2" Electric trailer brakes. For 7K axle, 8-6.50 BC, studded 1/2"-20, 2.24" seal, greased with bearings, & E-Z Lube® Grease Caps. Includes Dexter 023-180-00 & 023-181-00.  Includes mounting hardware. These are fully assembled backing plates with shoes, springs, and magnets attached and ready to be mounted. The pair includes one left hand and one right hand brake assembly.

Bearings and seal come installed & pre-greased. They also included E-Z Lube & standard grease caps, spindle attachment hardware & lug nuts.

Dx Part No	Quantity	Description
008-219-04	2	Hub & Drum,7K, 1/2"
031-030-02	2	Bearing Cone 25580
031-017-02	2	Bearing Cone 14125A
010-036-00	2	Seal 2.25"
006-080-00	16	Nut, Cone 60-Deg
021-039-00	2	Grease Cap
021-043-01	2	Grease Cap
085-001-00	2	Rubber Plug
006-190-00	2	Nut, Retainer
006-191-00	2	Nut, Hex
005-057-00	2	Washer, "D"
005-223-00	2	Washer
019-002-00	2	Cotter Pin
059-831-00	2	Instruction Sheet
006-176-00	2	Nut, Slotted
023-180-00	1	12" x 2" 5.2K, 6K, 7K Electric LH
023-181-00	1	12" x 2" 5.2K, 6K, 7K Electric RH
38LW	10	3/8" Lock Washer
38NFN	10	3/8" Fine Nut
363989	10	3/8" Mounting Stud
