Dexter® Axle 7,000 lb. #12 Dexter® Torflex® Rubber Torsion Suspension Trailer Axle Beam

7,000 lb. #12 Dexter® Torflex® Rubber Torsion Suspension Trailer Axle Beam

Part #: TORFLEXNUMBER127K

Flash Sale 10% Off Auto Applied at Checkout

This product qualifies for quantity discount pricing

Quantity	Discount%	Discounted Base Price
2-5	5%	$1,414.54
6-20	10%	$1,340.09
21-1000	15%	$1,265.64

Free FedEx Shipping and Volume Pricing

Made In The USA

106 Years in Trailer parts Distribution

Summary

7,000 lb. #12 Dexter® Torflex® Torsion Axle beam. Cambered beam with brake flange, E-Z Lube® spindles, low profile mounting brackets in the standard position with a painted finish. Normal delivery takes 3-4 weeks. Caution: Triple axle assemblies are NOT recommended for #12 Torflex axles.

Outside of Brackets

Hub Face Measurement (Minimum Overall Overhang 15" Maximum Overall Overhang 30") (Example outside bracket 60" hub face will be 75" to 90") (Maximum 95" hub face)

22.5° Down - No Load H 4.30" L 5.54" Full Load H 2.00" L 6.00"Shock Load H 0.83" L 5.88"

10° Down - No Load H 3.04" L 5.91" Full Load H -0.70" L 5.86" Shock Load H -0.42" L 5.49"

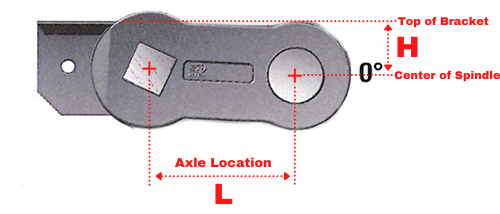

0° - No Load H - 2.00" L 6.00" Full Load H -0.30" L 5.54" Shock Load H -1.33" L 4.99"

10° Up - No Load H - 0.96" L 5.91" Full Load H -1.22" L 5.06" Shock Load H -2.15" L 4.33"

22.5° Up - No Load H -0.30" L 5.54" Full Load H -2.24" L 4.24" Shock Load H -2.99" L 3.33"

Painted

Galvanized - Will take 2-3 additional weeks to ship [Add $200.00]

Cambered, Brake Flange, E-Z Lube Spindle, Low Profile Mounting Bracket in Standard Orientation, No Pre-Wire

By selecting this box, you agree this is a custom-built to order Torflex trailer axle to the specifications provided on this order form. Once the order is placed the axle cannot be altered, changed, cancelled, or returned for any reason. If you have any questions before placing this order please email [email protected] or call 1-800-866-3336

Summary

Hub Face Measurement (Minimum Overall Overhang 15" Maximum Overall Overhang 30") (Example outside bracket 60" hub face will be 75" to 90") (Maximum 95" hub face)
22.5° Down - No Load H 4.30" L 5.54" Full Load H 2.00" L 6.00"Shock Load H 0.83" L 5.88"
Painted
Cambered, Brake Flange, E-Z Lube Spindle, Low Profile Mounting Bracket in Standard Orientation, No Pre-Wire
By selecting this box, you agree this is a custom-built to order Torflex trailer axle to the specifications provided on this order form. Once the order is placed the axle cannot be altered, changed, cancelled, or returned for any reason. If you have any questions before placing this order please email [email protected] or call 1-800-866-3336

Base Price: $1,488.99

Customized Price: $1,488.99
