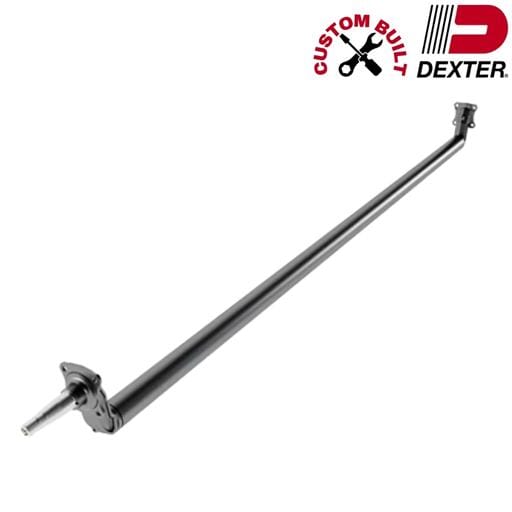

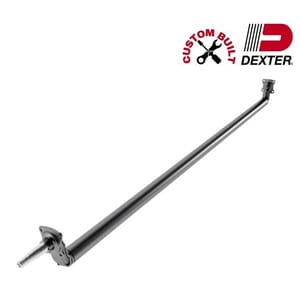

Dexter Custom Built 2,000 lb. Standard Spring Trailer Axle Beam
Manufacturer: Dexter Trailer Axle
Part #: KT20XXBT9
Halloween Sale! Save 10.7% off this product! Discount auto applied at checkout
This product qualifies for quantity discount pricing
| Quantity | Discount% | Discounted Base Price |
|---|---|---|
| 2-10 | 2% | $130.86 |
| 11-20 | 4% | $128.19 |
| 21-30 | 6% | $125.52 |
| 31-40 | 8% | $122.85 |
| 41-50 | 10% | $120.18 |
| 51-60 | 12% | $117.51 |
| 61-70 | 14% | $114.84 |
| 71-80 | 16% | $112.17 |
| 81-90 | 18% | $109.49 |
| 91+ | 20% | $106.82 |
$9.99 FedEx Flat Rate Shipping Per Order
Made In The USA
107 Years in Trailer Parts Distribution
Frequently Bought With
Brake options for 2,000 lbs. Dexter® Axle
Hub options for 2,000 lbs. Dexter® Axle
U-Bolt and Hanger Kit options for 2,000 lbs. Dexter®
Suspension Kit options for 2,000 lbs. Dexter® Axle
Wheel and Tire options for 2,000 lbs. Dexter® Axle
Description
Build this 2,000 lb. Dexter axle beam the way you want it. Choose the hub face, camber, spring seats, E-Z Lube, brake flange, and pre-wire. Each choice is on the form. The tube is 1-3/4" round with a 3/16" nominal wall. The spindle is a Type BT9, with a 1-1/16" inner journal and a 1-1/16" outer journal. Hubs, springs, hangers, and U-bolts are not included.
Build options
- Hub face (required): 45" to 95". Maximum hub face is 95". Hub face is the measurement from the wheel mount on one hub to the same point on the other hub.
- Camber and spring seats (required): Straight, seats ship loose. Straight, seats welded on. Cambered, seats welded over the axle (overslung). Cambered, seats welded under the axle (underslung). Cambered, seats ship loose.
- Spring center (optional): Use this only if the seats are welded. Overhang is the hub face minus the spring center. It must be between 11.50" and 15.24". A 95" hub face and an 80" spring center is 15" of overhang. Leave it blank and the seats ship loose.
- E-Z Lube (required): No, or yes. Yes is an additional cost.
- Brake flange (required): No, or yes. Yes is an additional cost.
- Pre-wire (required): No, or yes.
What stays the same
- Brand: Dexter
- Capacity: 2,000 lb.
- Tube: 1-3/4" round, 3/16" nominal wall
- Finish: Standard black paint
- Spindle: Type BT9, inner journal 1-1/16", outer journal 1-1/16", unless you choose E-Z Lube
- Hubs: Not included. Idler hubs for this beam are 4 on 4" or 5 on 4.5". Hubs are shipped without grease or oil. Bearings must be packed or filled before use.
- Not included: Hubs, springs, hangers, and U-bolts
Fitment note
Set the hub face between 45" and 95". If the spring seats are welded, keep the overhang between 11.50" and 15.24". Leave the spring center blank and the seats ship loose. This listing is the beam only. Verify the hub face and spring center before ordering or call for assistance.
Questions about this Dexter axle beam or compatibility? Call 1-800-866-3336.
Browse more Custom Built Dexter Trailer Axles.
