2,000 lb. Standard Spring Dexter® Trailer Axle 71" Hub Face 58" Spring Center - 12460340
Manufacturer: Dexter® Axle
Part #: 12460340
Price:
$194.99
This product qualifies for quantity discount pricing
| Quantity | Discount% | Discounted Base Price |
|---|---|---|
| 2-5 | 5% | $185.24 |
| 6-20 | 10% | $175.49 |
| 21-1000 | 15% | $165.74 |
Free FedEx Ground Shipping and Volume Pricing
Made In The USA
106 Years in Trailer parts Distribution
Summary
This trailer axle beam is made from 1-3/4" diameter round tubing with a 3/16" nominal wall thickness and is available in a straight configuration only. It comes pre-configured with a 71" hub face, 58" spring center, E-Z Lube BT9 spindles featuring 1-1/16" inner and outer journal diameters and includes brake flanges for optional future brake installation. The axle is cambered for load distribution and designed as an underslung setup, meaning the axle sits above the leaf springs. It is coated in standard black paint and comes with spring seats pre-welded for easy installation. Lubrication is grease-based. This listing is for the axle beam only—hubs, springs, hangers, and U-bolts are not included. Compatible idler hubs (sold separately) include 4 on 4" and 5 on 4.5" bolt patterns.
Frequently Bought With

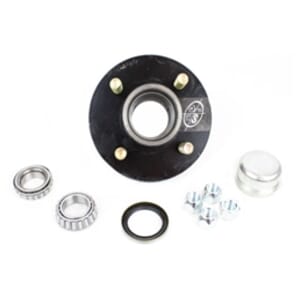

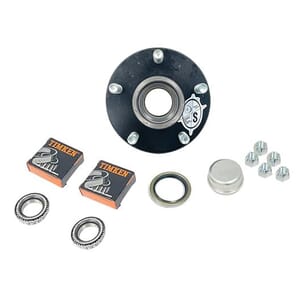

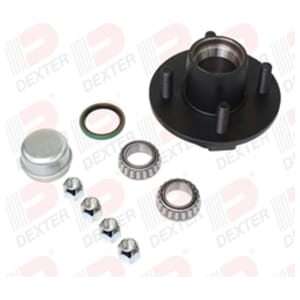

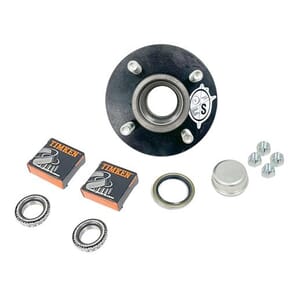

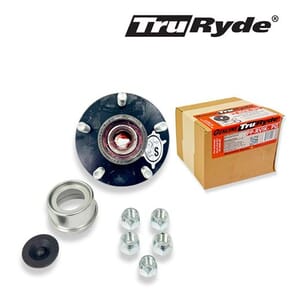

Hub options for 2,000 lbs. Dexter® Axle (You will need two hubs per trailer axle) Save 10% on each added item
U-Bolt and Hanger Kit options for 2,000 lbs. Dexter® Axle - Save 10% on each added item
Suspension Kit options for 2,000 lbs. Dexter® Axle - Save 10% on each added item
Wheel and Tire options for 2,000 lbs. Dexter® Axle (You will need two trailer wheels and tires per trailer axle) Save 10% on each added item
Description
This trailer axle beam is made from 1-3/4" diameter round tubing with a 3/16" nominal wall thickness and is available in a straight configuration only. It comes pre-configured with a 71" hub face, 58" spring center, E-Z Lube BT9 spindles featuring 1-1/16" inner and outer journal diameters and includes brake flanges for optional future brake installation. The axle is cambered for load distribution and designed as an underslung setup, meaning the axle sits above the leaf springs. It is coated in standard black paint and comes with spring seats pre-welded for easy installation. Lubrication is grease-based. This listing is for the axle beam only—hubs, springs, hangers, and U-bolts are not included. Compatible idler hubs (sold separately) include 4 on 4" and 5 on 4.5" bolt patterns.
