Dexter® Axle

The Dexter BK13ELE-DB-TK is a 12" electric brake kit for a 5,200 lb. heavy-duty trailer axle with a 6 on 5.50" bolt circle. It includes two hub and drums, a left-hand brake, a right-hand brake, Timken

The Dexter 13HLB3E-DB is a 6 on 5.50" hub and drum with parts for a 5,200 lb. heavy-duty axle. It works on a #42 spindle. The studs are 1/2"-20. The inner bearing is 25580. The outer bearing is 15123.

The Dexter 13HLB3E-DB-TK is a 6 on 5.50" hub and drum with parts for a 5,200 lb. heavy-duty axle. It works on a #42 spindle. The studs are 1/2"-20. The inner bearing is Timken 25580. The outer bearing

The Dexter K71-299-00 is a pack of six 60-degree cone wheel nuts. The thread is 1/2"-20 UNF. The nut number is 006-080-00. It fits the 5 on 4.50" hubs 008-271-04, 008-271-07, 008-258-04, 008-259-04, 0

The Dexter® Axle Dexter 6K, 7K & 8K Disc Brake Pads Set for One Axle (Part #K71-629-00) is a genuine Dexter OEM replacement brake pad set designed for 6,000 lb., 7,000 lb., and 8,000 lb. hydraulic

Converts one idler axle to 7" electric brakes with 5-4.50 BC (2.2K). Dx Part No Quantity Description

Converts one idler axle to 7" electric brakes with 4-4.00 BC (2.2K). Dx Part No Quantity Description

Fits Dexter 7" x 1 1/4" brake (after 4/1/90) and 10" x 1 1/2" brakes (prior to 9/1/88).  Dx Part No Quantity Description

The Dexter 006-017-00 is a 7/16"-20 fine hex nut for 10,000 to 12,000 lb. trailer brakes with a seven-hole brake flange. It is the nut for mounting bolt 007-116-00. Part Number: 006-017-00, Sold indi

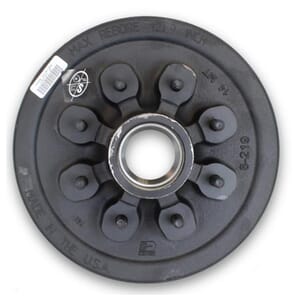

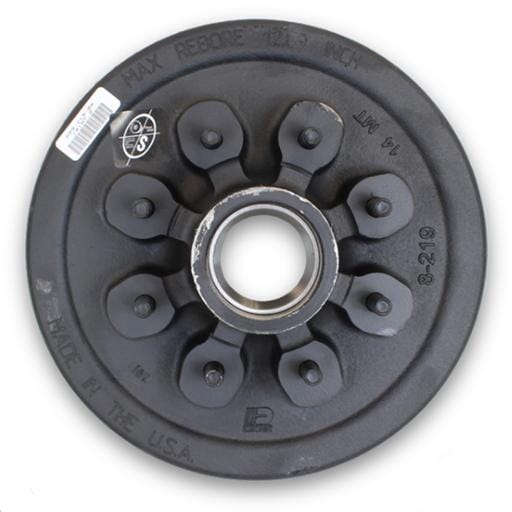

The Dexter 008-219-04 is an 8 on 6.50" hub and drum only for a 7,000 lb. axle. It is a 12" drum. It works on a #42 spindle. The studs are 1/2"-20. The hub and drum is cupped and studded. Part Number:

The Dexter BK42865ELE-DB is a 12" electric brake kit for a 7,000 lb. trailer axle with an 8 on 6.50" bolt circle and 1/2" studs. It includes two hub and drums, a left-hand brake, a right-hand brake, T

The Dexter BK42865ELE-DB-TK is a 12" electric brake kit for a 7,000 lb. trailer axle with an 8 on 6.50" bolt circle and 1/2" studs. It includes two hub and drums, a left-hand brake, a right-hand brake

The Dexter 42865LB3E-DB is an 8 on 6.50" hub and drum with parts for a 7,000 lb. axle. The studs are 1/2"-20. It works on a #42 spindle. The inner bearing is 25580. The outer bearing is 14125A. Part

The Dexter 42865LB3E-DB-TK is an 8 on 6.50" hub and drum with parts for a 7,000 lb. axle. The studs are 1/2"-20. It works on a #42 spindle. The inner bearing is Timken 25580. The outer bearing is Timk

Dexter 8K disc brakes

Dexter 9,000 lbs. – 12,000 lbs. Bolt-On Steel Grease Cap K21-307-00

The Dexter 007-223-00 is a press-in wheel stud. The thread is 9/16"-18 UNF. The length is 2.01 inches. It fits the 7,000 lb. Nev-R-Lube hub and drums 008-389-81, 008-395-80, and 008-385-81. It also fi

Replaces 90-degree cone, ⁵⁄₈"-18 UNF wheel nut

Fits Dexter 9K (after 10/89) and 10K, 12K, 15K, 4"-12 threads. Dx Part No Quantity Description

Adjuster screw assembly fits Dexter 10" x 1¹⁄₂", 10" x 2¹⁄₄" hydraulic and electric, and 12" x 2" electric brakes.
