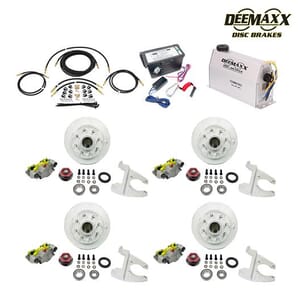

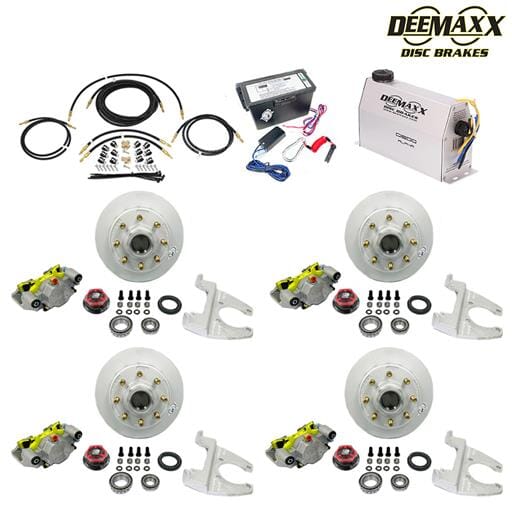

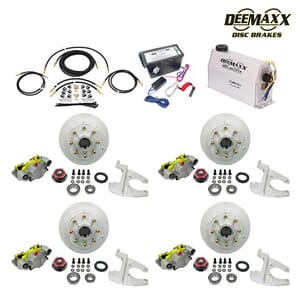

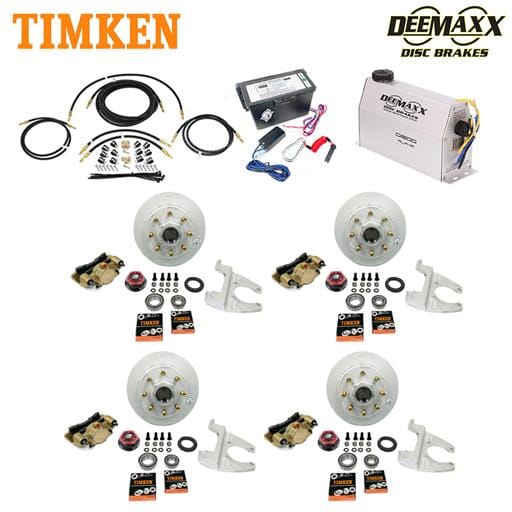

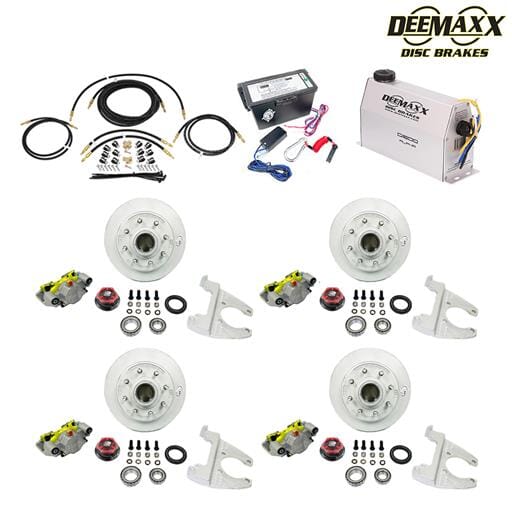

MAXX KIT Electric Over Hydraulic 8,000 lbs. Disc Brake Kit with 9/16" Studs for a Tandem Axle with Gold Zinc Caliper and Timken® Bearings - DMK8IG2916-TK

The TR-EOHA1600, electric over hydraulic brake actuator with its sleek and modern design, was created with high-quality standards to withstand even the harshest conditions. Its compact size allows for easy installation, and brake line fitting with 360 degrees of movement is included to connect your brake line from all mounting positions. In addition, all DeeMaxx 1600psi brake actuators have a swift response time, reaching 1,000 psi in 0.184 seconds.

DeeMaxx TR-EOHA1600 Electric Over Hydraulic Brake Actuator

Features:

• This electric over hydraulic brake actuator has an in-built compatibility adapter, so no external compatibility device is necessary.
• High-powered DC motor and quality pump with minimal moving parts.
• Weatherproof, anodized alloy case protects components from external elements (such as saltwater, extreme temperatures, and poor road conditions).
• Anodized, T6-grade extruded alloy housing protects from different environments and has a great aesthetic design.
• Independently sealed fluid tank.
• Conformal coating on the circuit board is designed to provide extra protection from moisture.
• Two-year no-hassle warranty.



• DOT Compliant
• Trailer Mounted
• Application: Disk brakes for single, tandem, tri, and quad axel trailers
• Distance between mounting holes: 10.95” & 1.38” (278mm & 35mm)
• Mounting Hole Diameter 1.2cm x 0.8cm (12 x 8 mm) slot
• Hydraulic Port Size: 3/16 inverted flare (standard brake line fitting)
• Dot 4 Brake Fluid
• Fluid Capacity of 15.7 oz
• Power: 12V DC (min 30-amp circuit)
• Max Current Draw at full pressure approximately 18-24 amps.
• Wire Configuration:
  • Black: 12-volt power
  • Blue: brake controller
  • Yellow: breakaway
  • White: ground
• Wire Gauge Recommendation
  • A minimum of 10 gauge on black and white
  • A minimum 12 gauge on blue and yellow
• Dimensions:
  • Length: 10” (255mm)
  • Height: 6” (152mm)
  • Width: 3.6” Base / 1.7” Top (90mm Base / 44mm Top)
  • Mounting centers: 10.9” L and 1.6” W (275mm and 40mm)


• 8 lug 9/16" studs. 13.1" Integral vented rotor.
• Unique rotor cross section design actively draws cooling air from the rotor interior!
• Exclusive 120º bleeder design means better bleeding, balanced system, and no more damaged bleeders!
• Exclusive laser writing on caliper means instructions are always there!
• Every caliper is tested to 2000 psi
• Robust ductile iron casting eliminates flexing resulting in more brake torque.
• Exclusive bolt design means no more mishandling or incorrect shipping of bolts.
• Compatible with every surge and electric over hydraulic actuators!
• Ceramic brake pads are slotted, chamfered, & feature a stainless steel clip
• Unique bracket design provides twice as many mounting options for caliper position
• Produced in ISO Quality certified factories!
• Passed the SAE J2681 Brake test!
