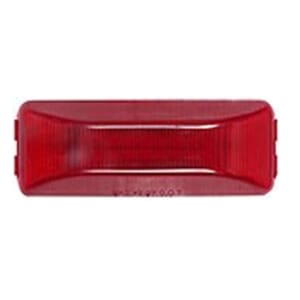

Optronics Red Rectangular Thin Line LED Marker/Clearance Light 2 Diodes - MCL40RB

Part Number: MCL40RB, Sold Individually.
Red Rectangular Thin Line LED Marker/Clearance Light.LED clearance or side marker light, features a reflectorized lens eliminating the need for a separate reflector to meet DOT requirements.  Surface mount white base mounts on industry standard 3” centers.  Features snap-on, replaceable lens.  Two-wire design includes both lead wire and ground wire for mounting to all surfaces.  All-weather molded plastic housing and durable lens protect against corrosion. 2 diodes. Hard wired (black=power, white=ground).

Product Specifications

• Color: Red
• Diodes: 6
• Mount: Surface
• Connection: Hard Wired
• FMVSS: P2 A
• Housing Material: ABS
• Lens Material: Acrylic
• Voltage: 12V
• Amp Draw: 0.04
• Warranty: Lifetime LED Warranty
• Weight: 0.088 lbs.
• Size/Shape: Rectangular
• Dimensions (W x H x D): 4.000 x 1.500 x 0.938
