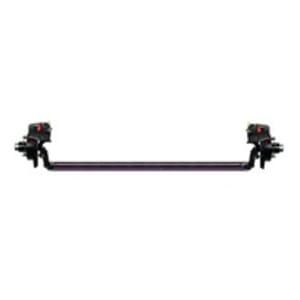

5,200 lb. Brake 4" Drop Standard Spring Dexter® Trailer Axle
Manufacturer: Dexter Trailer Axle
Part #: KD52XX42F
This product qualifies for quantity discount pricing
| Quantity | Discount% | Discounted Base Price |
|---|---|---|
| 2-10 | 2% | $626.21 |
| 11-20 | 4% | $613.43 |
| 21-30 | 6% | $600.65 |
| 31-40 | 8% | $587.87 |
| 41-50 | 10% | $575.09 |
| 51-60 | 12% | $562.31 |
| 61-70 | 14% | $549.53 |
| 71-80 | 16% | $536.75 |
| 81-90 | 18% | $523.97 |
| 91+ | 20% | $511.19 |
$9.99 FedEx Flat Rate Shipping Per Order
107 Years in Trailer Parts Distribution
Summary
Frequently Bought With
U-Bolt and Hanger Kit options for 5,200 lbs. Dexter® Axle
Suspension Kit options for 5,200 lbs. Dexter® Axle
Wheel and Tire options for 5,200 lbs. Dexter® Axle
Description
The Dexter® Trailer Axle 5,200 lb. 4" Drop Standard Spring is a genuine Dexter drop axle beam designed for single and tandem axle trailers that require additional ground clearance or a lower ride height. This 4" drop axle provides a lower center of gravity for improved stability while maintaining the strong 5,200 lb. capacity.
Key Features
- Capacity: 5,200 lb.
- Drop: 4" Drop
- Tube: 3" diameter round tubing with 3/16" nominal wall thickness
- Spindles: Type 42 spindles (Inner journal: 1-3/4", Outer journal: 1-1/4")
- Brake Flanges: Included (ready for brake installation)
- Design: Straight axle (not cambered)
- Finish: Black painted for corrosion protection
- Brand: Genuine Dexter Axle
Trailer axle: 3" diameter x 3/16" wall round tubing. Idler hubs and hub/drums available in 6-5.5". Will come complete with backing plates and hub/drum assemblies. Brake: 12" x 2" is available in electric drum, self-adjusting electric drum, or hydraulic drum. Lubrication: Grease. Spindle: Type 42 with an inner journal dimension of 1 3/4" and an outer journal dimension of 1 1/4". Includes brake flange. Trailer axles are available in different lengths or hub faces. Trailer axle price does not include springs, hangers, or u-bolts. Maximum Overhang = 21" Minimum Overhang = 17". Overhang is the difference between the spring center and the hub face. Exceeding the maximum overhang will result in reduced axle capacity. Minimum Overhang dimensions are based on zero offset wheels and physical clearances; and are determined by suspension type, wheel and tire combination. Axles are straight axles, not cambered. Coated with standard black paint. Axle seats come loose with axle. Brake axles will require assembly. To order a brake axle you will need to tell us your hub face measurement, select a bolt circle, and select which style of brake assembly. Please select all required fields.
Questions about this axle or custom configurations? Call our trailer experts at 1-800-866-3336.
