TruRyde 8 on 6.50" Oil Hub and Drum for a 12,000 lb. Axle, 5/8" Studs - RVD-12K-865-580

The TruRyde RVD-12K-865-580 is an 8 on 6.50" oil hub and drum for a 12,000 lb. axle. The studs are 5/8". The inner bearing is 3984. The outer bearing is 28682. The inner race is 3920. The outer race is 28622. The oil seal is OS-3125UNI. The oil cap is DC-O-400. The spindle nut is FA-SN175. The spindle washer is FA-SW175. The cotter pin is FA-CP175. The drum is BD-12K/16K-865. It works with the hub RVI-12K-865-580.

Part Number: RVD-12K-865-580, Sold individually. TruRyde 8 on 6.50" oil hub and drum for a 12,000 lb. axle, 5/8" studs.

Product details

• Part Number: RVD-12K-865-580
• Brand: TruRyde
• Part type: Oil hub and drum
• Capacity: 12,000 lb. axle
• Bolt circle: 8 on 6.50"
• Stud size: 5/8"
• Inner bearing: 3984
• Outer bearing: 28682
• Inner race: 3920
• Outer race: 28622
• Oil seal: OS-3125UNI, 3.125 inch shaft
• Oil cap: DC-O-400
• Spindle nut: FA-SN175
• Spindle washer: FA-SW175
• Cotter pin: FA-CP175

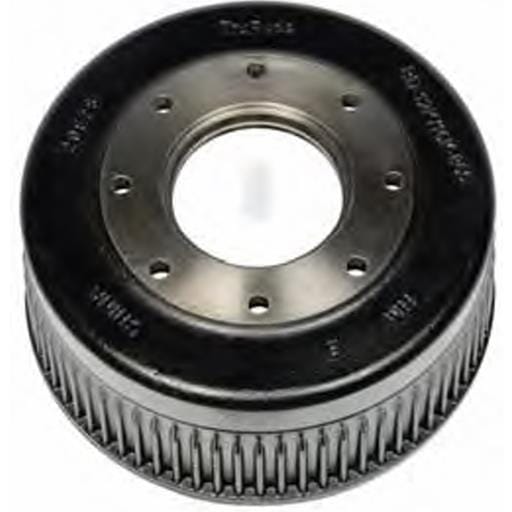

• Drum: BD-12K/16K-865
• Hub: RVI-12K-865-580

Fitment note

This is an 8 on 6.50" oil hub and drum for a 12,000 lb. axle. The studs are 5/8". The inner bearing is 3984 and the outer bearing is 28682. The inner race is 3920 and the outer race is 28622. The oil seal is OS-3125UNI on a 3.125 inch shaft. The oil cap is DC-O-400. The spindle nut is FA-SN175. The spindle washer is FA-SW175. The cotter pin is FA-CP175. The drum is BD-12K/16K-865. It works with the hub RVI-12K-865-580. Verify fitment before ordering or call for assistance.

Questions about this TruRyde hub and drum or compatibility? Call 1-800-866-3336.
