10,000 lbs. Dual Wheel Dexter® Trailer Axles



20,000 lb. and 24,000 lb. Tandem Trailer Axle Assemblies

Features of 10,000 lbs. General Duty Axle Assembly: Heavy Duty 10K axle is constructed of 5" x 1/4" wall tubing. 50,000 PSI, 5" x 1/4" wall tubing is swaged and friction welded to the 120 spindle creating a weld which is stronger than the base metal. The uni-cast hub and drum assembly has a replaceable steel armature for use with electric brakes. Oil caps are molded from high strength poly-carbonate to minimize breakage and leakage. Timken bearings are lubricated with SAE 90 weight oil to assure long bearing life.

Single A measurement = 29 1/4"
Tandem A measurement = 35 1/2" - Tandem B measurement = 42 1/4" - Equalizer = 15 3/4"
Triple A measurement = 35 1/2" - Triple B measurement = 42 1/4" - Equalizer = 15 3/4"
6661294
Dexter®  10,000 lbs. electric brake axle with a 74" track and 47" spring centers, u-bolts, and springs without wheels and tires. 8-6.5" bolt circle flat faced (hub pilot) with 4.75" center bore. High strength 5" tubing. 5 leaf domestic slipper springs. High quality self-adjusting 12 1/4 x 3 3/8" drum brakes. This item can only be shipped by LTL freight & can not be delivered to residential addresses.If you choose the ground shipping option, your order will be held up, and you will be contacted with the LTL shipping options available.
(Images, descriptions, volume discounts, find out more...)
Price: $1,599.99

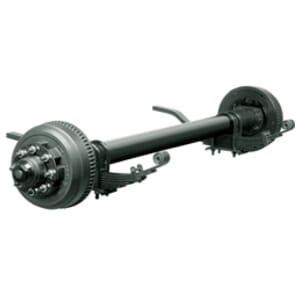

8182435
Dexter® 10,000 lbs. electric drum brake axle with a 70" track and 42" spring centers, u-bolts, and springs without wheels and tires. 8-6.5" bolt circle flat faced (hub pilot) with 4.75" center bore. High strength 5" tubing. 5 leaf domestic slipper springs. High quality self-adjusting 12 1/4 x 3 1/2" drum brakes.  This item can only be shipped by LTL freight & can not be delivered to residential addresses. If you choose the ground shipping option, your order will be held up, and you will be contacted with the LTL shipping options available.
(Images, descriptions, volume discounts, find out more...)
Price: $1,599.99
7618778
Dexter®  10,000 lbs. electric brake axle with a 74" track and 46" spring centers, u-bolts, and springs without wheels and tires. 8-6.5" bolt circle flat faced (hub pilot) with 4.75" center bore. High strength 5" tubing. 5 leaf domestic slipper springs. High quality self-adjusting 12 1/4 x 3 1/2" drum brakes. This item can only be shipped by LTL freight & can not be delivered to residential addresses. If you choose the ground shipping option, your order will be held up, and you will be contacted with the LTL shipping options available.
(Images, descriptions, volume discounts, find out more...)
Price: $1,599.99

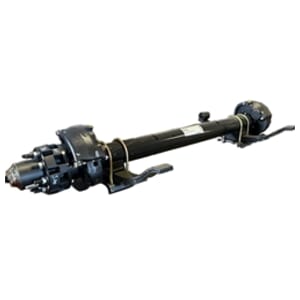

7517516
Dexter® 10,000 lbs. hydraulic disc brake axle with a 74" track and 46" spring centers, u-bolts, and springs without wheels and tires. 8-6.5" bolt circle flat faced (hub pilot) with 4.75" center bore. High strength 5" tubing. 5 leaf domestic slipper springs. This item can only be shipped by LTL freight & can not be delivered to residential addresses. If you choose the ground shipping option, your order will be held up, and you will be contacted with the LTL shipping options available.
(Images, descriptions, volume discounts, find out more...)
Price: $3,099.99
