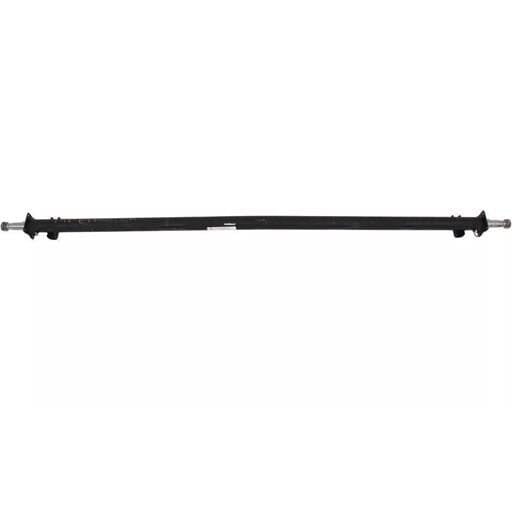

8,000 lbs. Straight Dexter® Trailer Axles

Trailer axle: 3.5" diameter x 1/4" wall, round tubing. Brake: 12" x 3 3/8" electric. Hub/Drum: Hub/drums available in 8-6.5" in a 9/16" or 5/8" stud.  Lug nuts are not included.  Lubrication: Grease or Oil. Spindle: Type 42 with an inner journal dimension of 1 3/4" and an outer journal dimension of 1 1/4". Includes brake flange. Trailer axles are available in different lengths or hub faces. Will come complete with backing plates and hub/drum assemblies. Trailer axle price does not include springs, hangers, or u-bolts. Maximum Overhang = 22.5" Minimum Overhang = 17" Overhang is the difference between the spring center and the hub face. Exceeding the maximum overhang will result in reduced axle capacity. Minimum Overhang dimensions are based on zero offset wheels and physical clearances; and are determined by suspension type, wheel and tire combination.  Axles are straight axles, not cambered.  Coated with standard black paint.  Drums and electric brakes are available in TruRyde or Dexter options.

Part No	Quantity	Description
SH-E5115	4	6 Leaf 28" Double Eye Spring 4300 lbs.
UBR-300800-56F	8	3.5" U-bolts, 8" long, 2" ID width, 9/16"-18 thread, 2" thread length
TP-350200	4	4" x 7" tie plates for 3.5" U-bolts
916LW	16	9/16"-20 Lock Washers
916NFN	16	9/16"-18 Nuts
916SLNE	14	9/16" Self-Locking Nut
916X312NFBLN	14	9/16"-18 x 3 1/2" Shackle Bolt
EQ-4541	2	12" Steel Fabricated Equalizer for 2" Spring
HG-15843-F	2	Front Hanger
HG-291-C	2	Center Hanger
HG-15853-R	2	Rear Hanger
